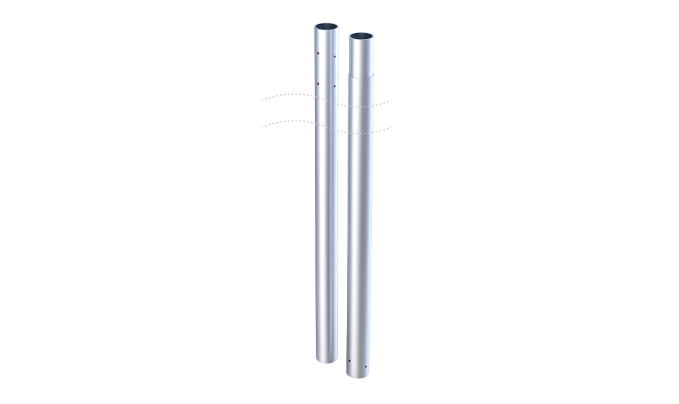

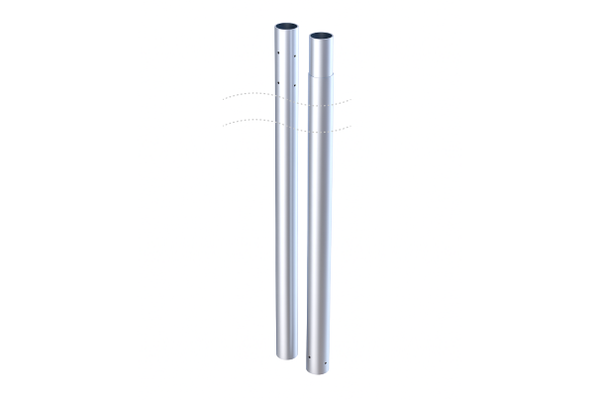

Two-Piece Riser, Fast Field Assembly
Ships in two sections for shipping and accessibility. The pieces combine quickly with standard tools for easy installation.
CNG & Hydrogen Time-Fill Posts

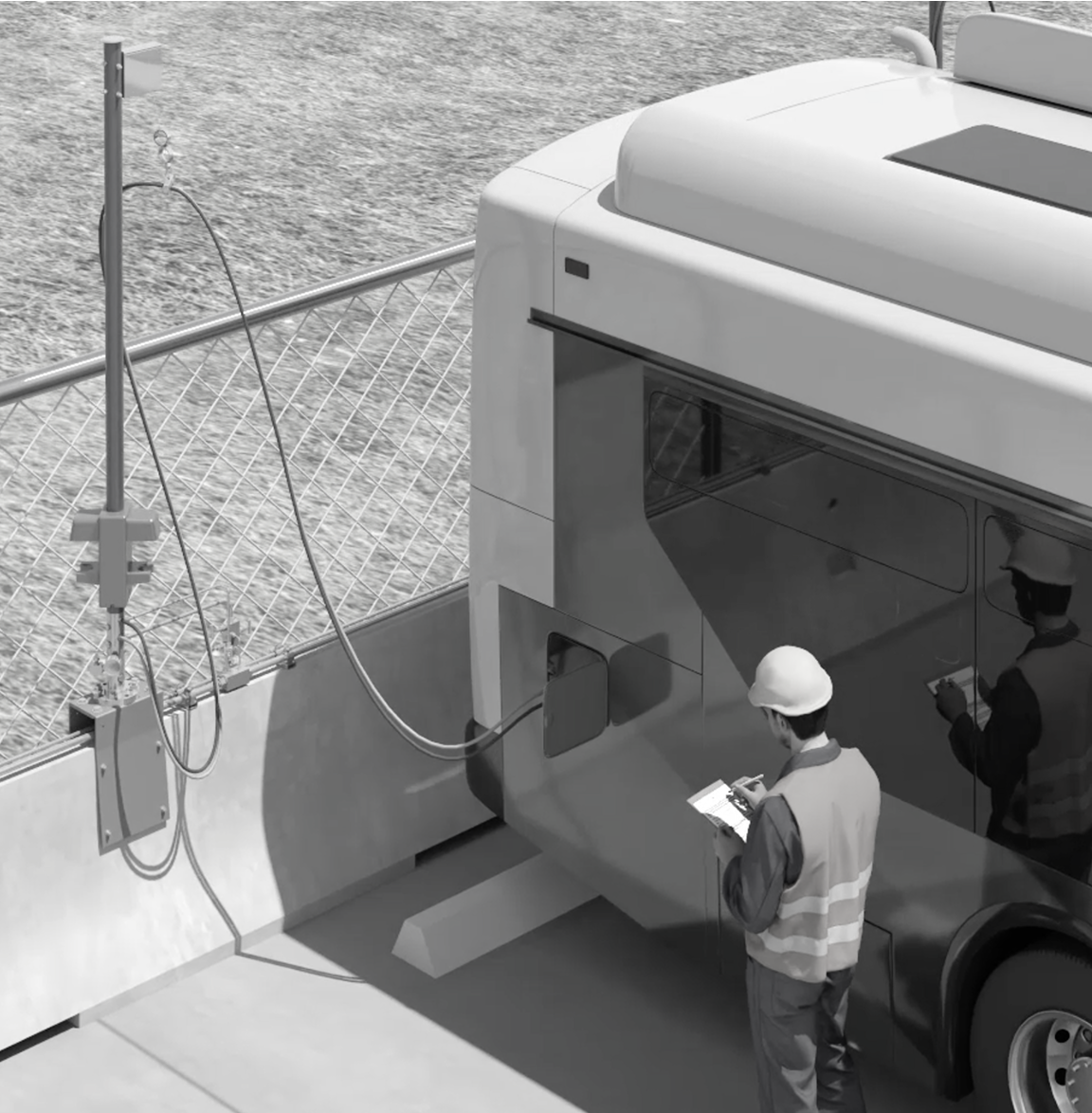

Refuel your fleets conveniently and cost-effectively. FASTECH’s time-fill posts support medium- to heavy-duty operations with easy installation and a long, low-touch service life.
Safe, Scalable & Cost-Effective Time-Fill Posts
Space-Efficiency
The compact manifold, two-piece riser, and optional K-rail bracket fit in tight depots without crowding lane space.
Scalable Deployment
Add positions as your fleet needs grow. Each manifold supports multiple hoses, while quick field assembly makes it easy to add capacity.
Built for Busy Fleets
FASTECH time-fill posts are engineered to optimize equipment life and operational efficiency. Enjoy simplified safety and hose management.
Key Components
FASTECH’s proven kit-of-parts, standard across all our time-fill post types, is engineered for safety, efficiency, and ease of use.

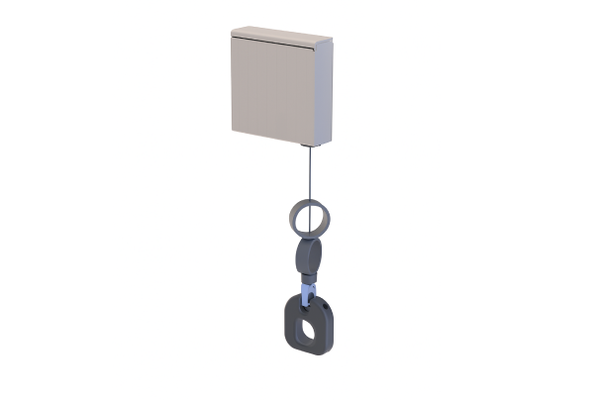

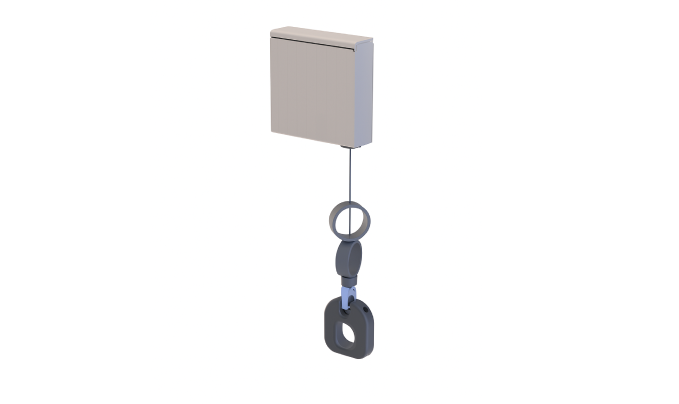

Retractor with hand-resettable breakaway
A spring retractor keeps hoses off the ground to reduce wear and trip hazards. The integrated breakaway protects hoses and posts in case of drive-offs, then resets without replacement.

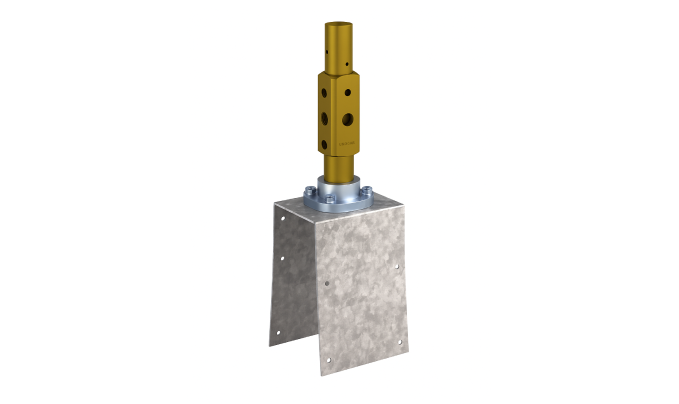

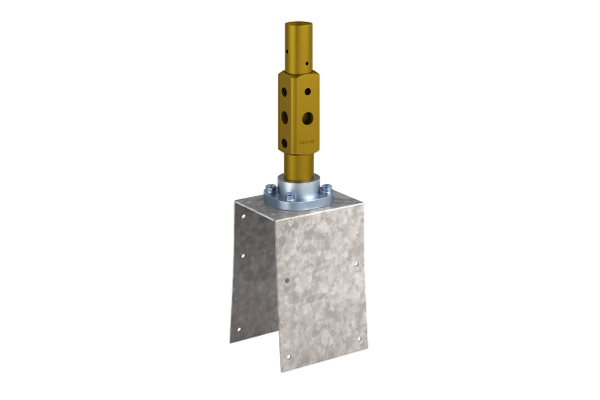

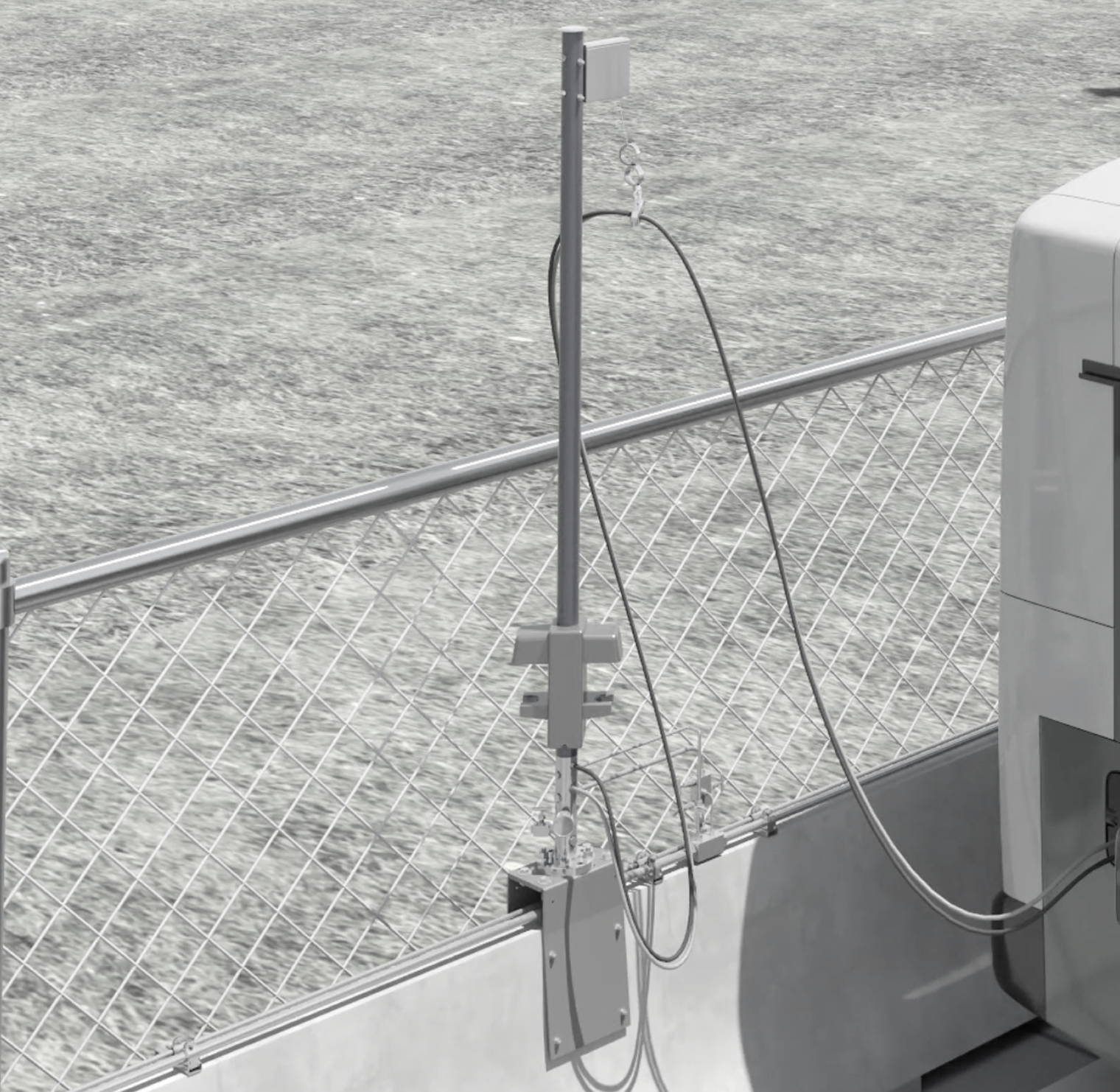

Modular Manifold, Flexible Mounting

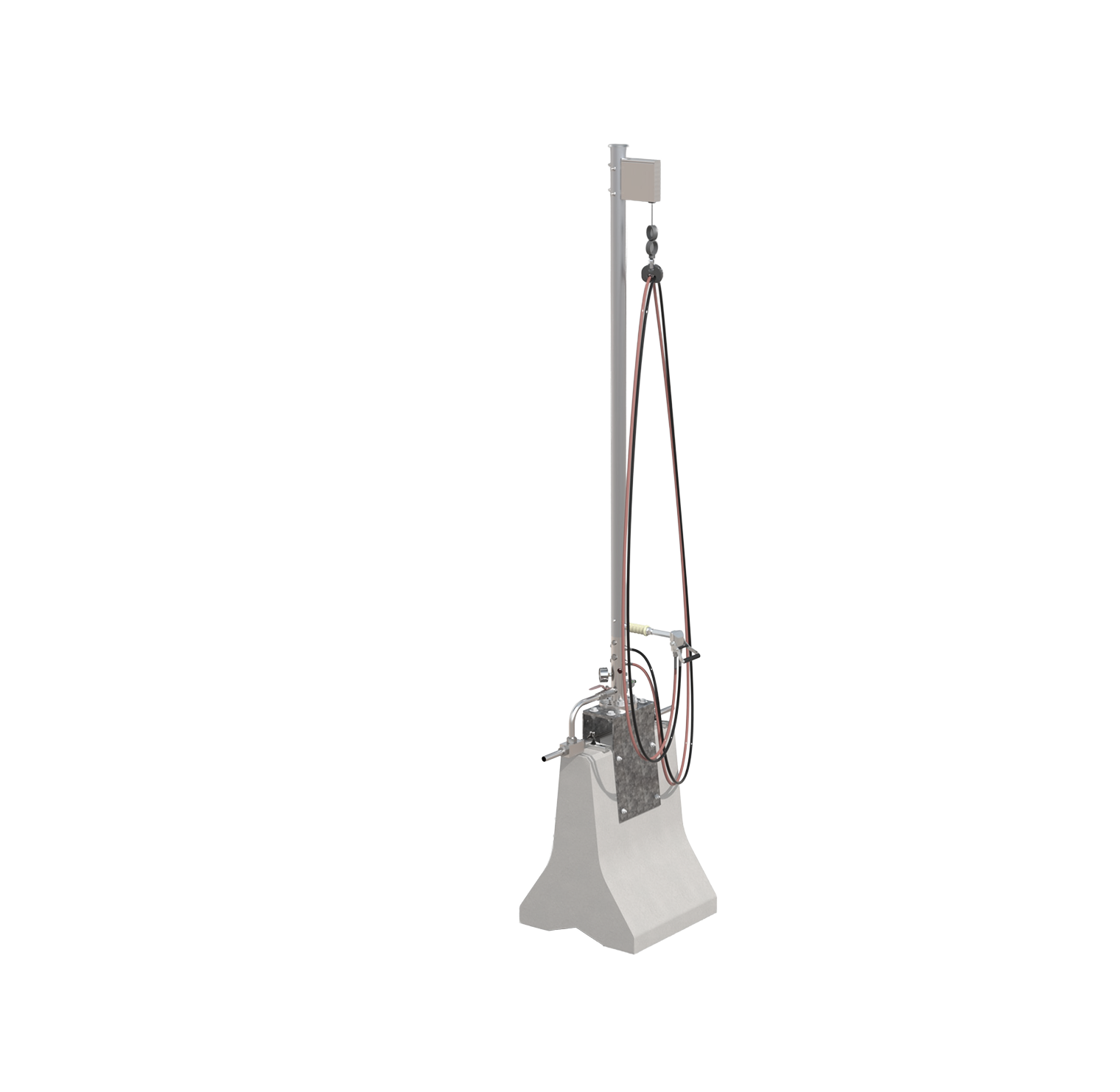

Choose caisson or K-rail mounting. Use the eight-hole base to rotate the post for angled parking, improving lane fit and operator access.
Time-Fill Post Options

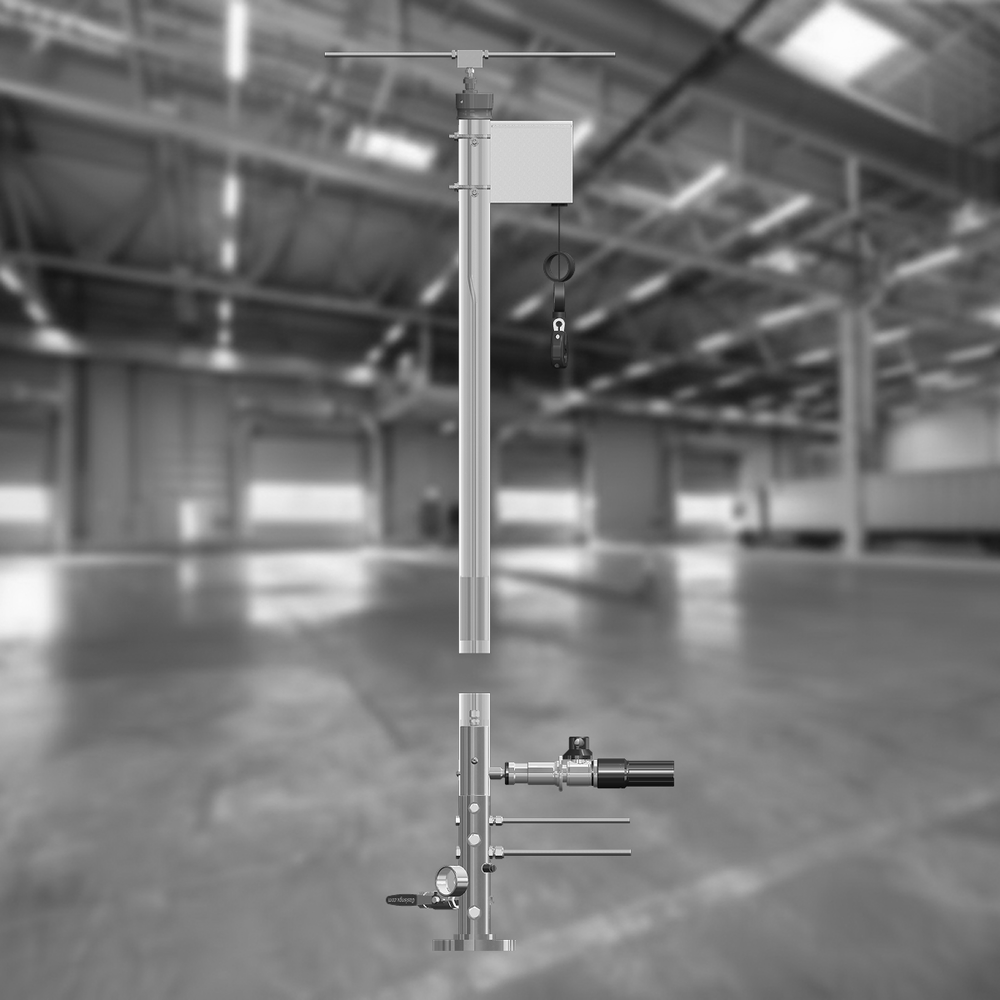

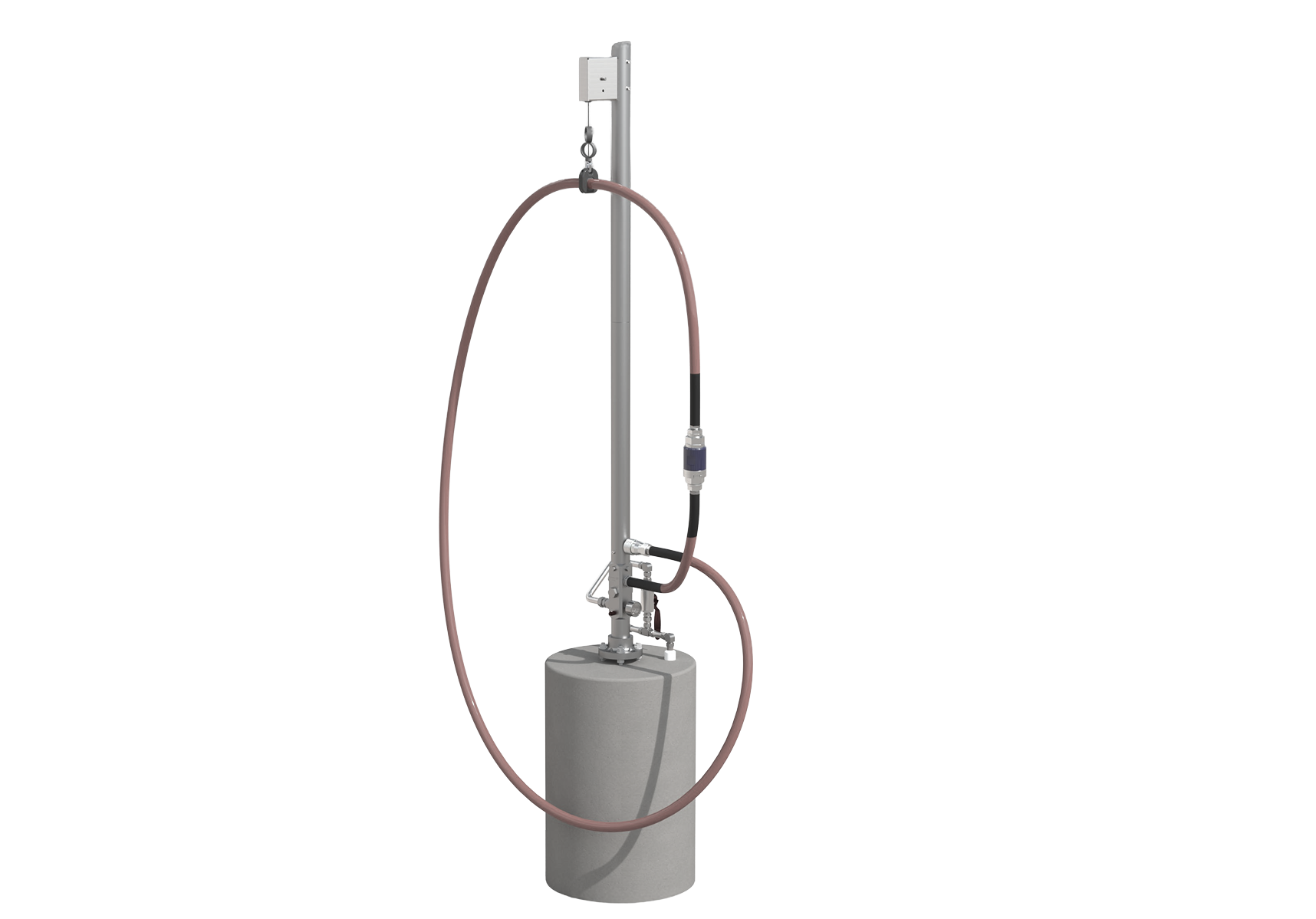

Standard CNG Time-Fill Posts
Purpose-built for overnight or extended fueling of CNG buses, trucks, and vans. Key features include:
- SAE-ORB connections: 8 process/hose, 6 hose vent, 4 bleed valve and gauge
- Expandable up to four hose connections per manifold
- Retractor reel hose holder with integrated breakaway
- Top-vented return manifold
- Two-piece riser

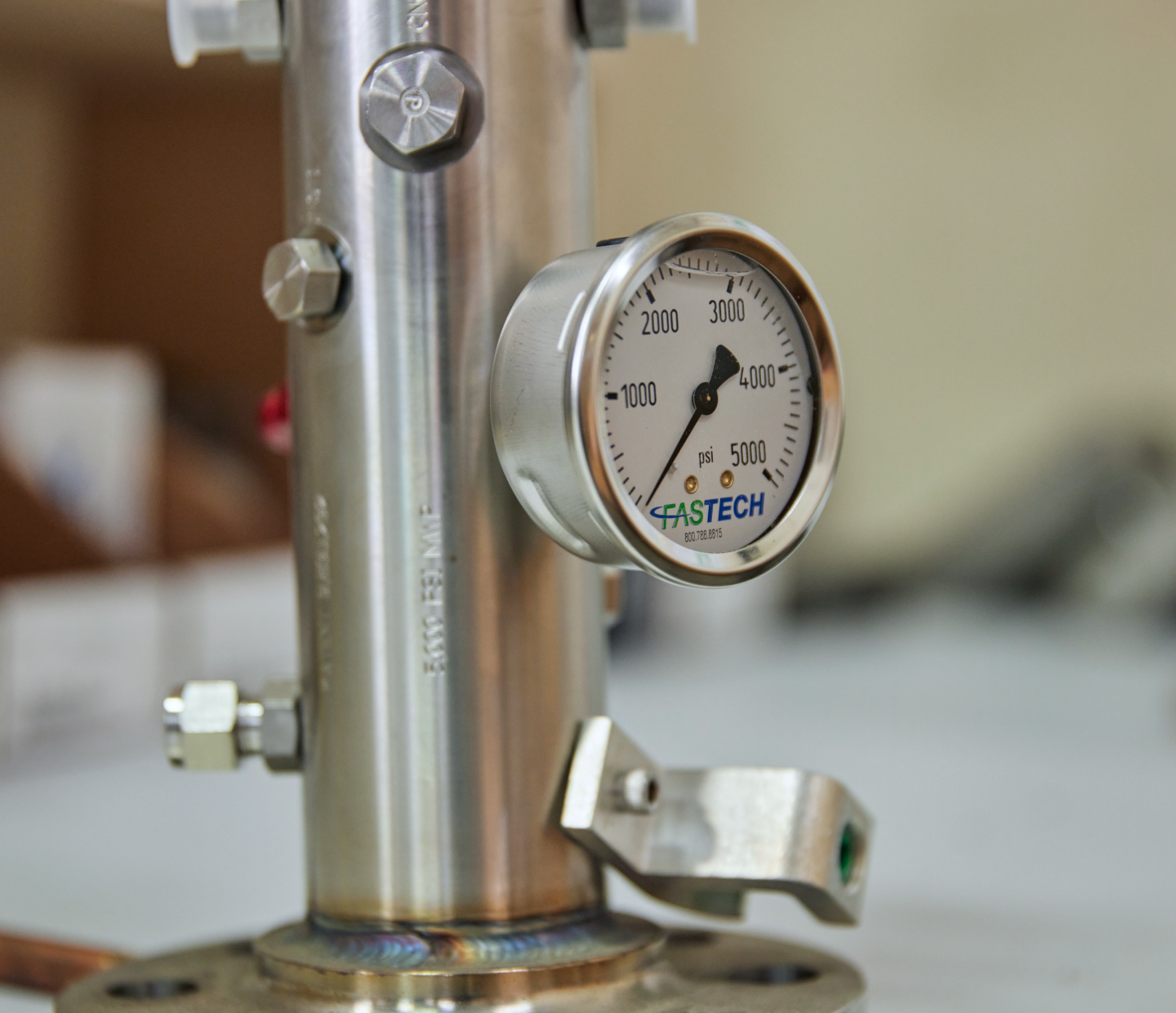

- 0–6,000 psi gauge
- MAWP 7,000 psi
- Wall, caisson, or K-rail mounting bracket options
- 8-hole base with 45° rotation for diagonal stalls

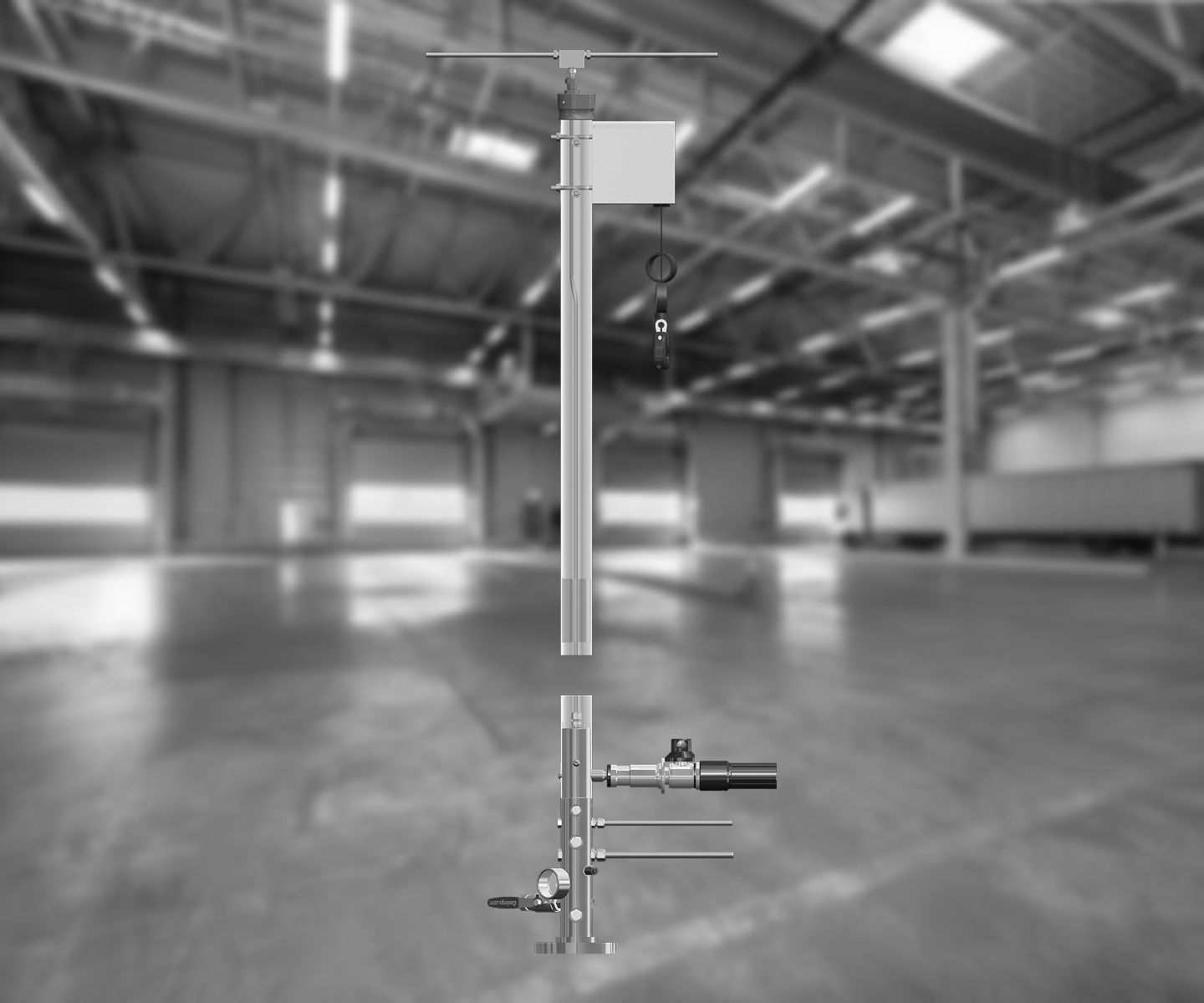

High-Flow CNG Time-Fill Posts
For trailer and product transfer with higher daily volumes, this unit increases throughput to a flow suitable for trailer filling and CNG product transfer.
- High-flow manifold; expandable up to four hoses
- 1-inch ID hose with high-flow breakaway; internal product flow path >1 inch
- SAE-ORB connections: 16 process/hose, 6 hose vent, 4 bleed valve and gauge.
- Compatible with high-flow coupling or NGV transit nozzle
- Retractor reel hose holder with integrated breakaway
- Two-piece riser
- MAWP 5,000 psi
- U.S. Patent No. 9,835,292
Hydrogen Time-Fill Posts
An affordable, durable system for supporting hydrogen fleets.
- 35 MPa hydrogen time-fill system
- Non-pre-cool fueling protocol
- Retractor reel hose holder with integrated breakaway
- Expandable up to two hoses per manifold
- Two-piece riser
- MAWP 7,000 psi
- U.S. Patent No. 9,835,292.
Why Choose FASTECH?
FASTECH is an end-to-end energy solutions provider with over 30 years of conventional and alternative fueling expertise.
Safety And Compliance First
Our teams have an EMR of 0.78 and hold over a dozen safety credentials, including certification by ICC, OSHA, and API. These achievements ensure safe sites and consistent quality.
Proven At Scale
Decades of engineering experience across hundreds of fuel station builds help to deliver quicker, cleaner projects for any budget.
Integrated EPC+M Delivery
Keeping design, construction, procurement, and maintenance under one roof lowers costs, confusion, and turnaround times.
Plan Your Project With FASTECH
Tell us about your fueling goals, and our engineers can help you get there on time and on budget.
